C/A and S/A ratio change field

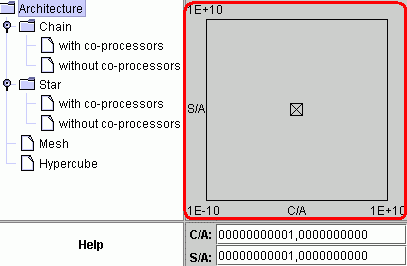

This field allows you to set C and S parameters for the chosen architectures. The A parameter is assigned value 1 because of technical reasons but C/A and S/A ratios can be changed. Their values range between 1E-10 and 1E+10. In the center of the field both values are equal 1. Click on the pointer and move it with your mouse. To change C/A ratio - move pointer horizontally, and vertically - to change S/A ratio.
